Quick Details

  • Type: Packaging Line
  • Condition: New
  • Application: Commodity, Food, Machinery & Hardware, Medical, powdered products
  • Packaging Type: gusset bag,pillow bag
  • Packaging Material: composite heat sealed film
  • Automatic Grade: Automatic
  • Driven Type: Pneumatic
  • Voltage: 220V or 380V
  • Power: 2.5KW-5KW
  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: CHANGBO
  • Model Number: CB-320/P420P/520P/720P
  • Dimension(L*W*H): 1320*950*1360mm
  • Weight: 1550GS
  • Certification: CE ISO BV GMP
  • After-sales Service Provided: Engineers available to service machinery overseas
  • electrical components: famous brand electrical components
  • machine body: SS304 or paint steel
  • high automation: Automatically adjust cursor & printer position & packing film
  • Keywords: powder packing machine
  • Product name: Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine

Packaging & Delivery

Packaging Details All our machines will be packed according to export standard, solid fumigation wooden cases or solid non original wood package, all guarantee the safety of machines and avoid damage during transportation

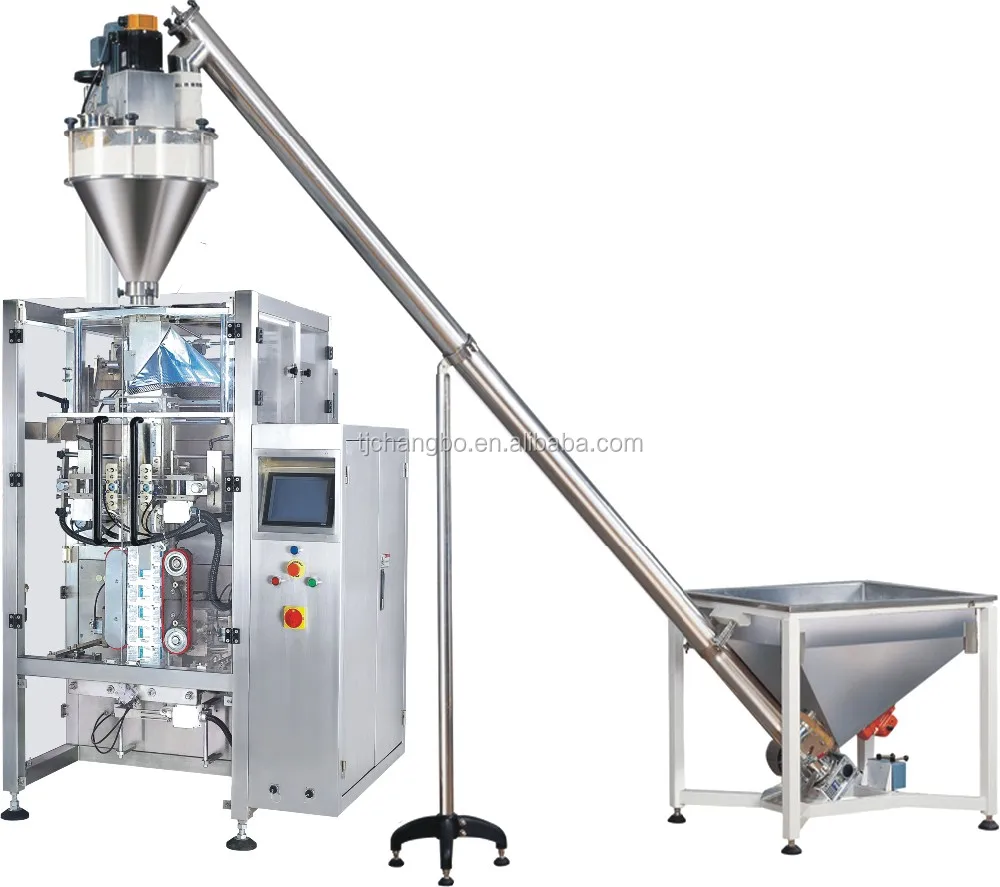

Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine



Product Description

 Application of Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine:

Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine can pack powdered products,such as flour,milk powder,corn starch,soy flour,glucose powder,ice cream powder,pepper powder,fish food powder,curry powder,cocoa powder,coffee powder,bean powder,washing powder,alkaline powder,organic fertilizer,etc.







Product description of Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine:



1> CB-320P/ 420P/520P/720PAutomatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine is our company absorb foreign advanced technology, and is improved and the production of a kind of high quality, high performance automatic packaging machine,complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
2> The machine adopts high precision servo film transport system, PLC program control,developed touchable human-machine interface of advanced automatic positioning,photoelectric tracking, digital temperature control, etc.
3> Operation is more simple, perfect. It is the first choice of food packaging industry to improve the production efficiency, reduce labor intensity, improve the grade of packaging equipment.
4> Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE,pp,and other heat sealing packaging materials, etc.

5> Optional Special requirement:




Features of Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine:


1> English-Chinese color touch screen display,easy to operate,easy to use.
2> Japan/Germany PLC computer control system,run more stable,no need stop machine to adjust the       parameter.
3> Store 10 sets parameters,changing products is more accurate.
4> Servo motor vacuum membrane,positioned more accurately.
5> Independent temperature control system,degree of accuracy up to +-1 degree.
6> Transverse and longitudinal independent temperature control,can be good for a variety of                       compound film,Pe film packaging materials.
7> Diversify packaging style,back closures gusseted,link bag,punches etc.
8> Produce bag,sealing,packaging,print date in one process.
9> Working environment clean and low noise.



Technical parameters of Automatic Aginomoto/Ajinomoto/Gourmet powder Packing Machine:



Type

CB-320P

CB-420P

CB-520P

CB-720P

Bag length

40-230mm

80-300mm

80-400mm

100-480mm

Bag width

20-150mm

50-200mm

80-250mm

200-320mm

Max width of roll film

320mm

420mm

520mm

680mm

Packing speed

5-60bags/min

5-60bags/min

5-50bags/min

5-50bags/min

Measuring range

0-500ml

150-1200ml

3000ml(Max)

6000ml(Max)

Air consumption

0.65

0.65mpa

0.65Mpa

0.65Mpa

Gas consumption

0.3m³/min

0.3m³/min

0.4m³/min

0.4m³/min

Power voltage

220V/380V

220V/380V

220V/380V

220V/380V

Power

2.5KW

2.2KW

4Kw

5Kw

Dimension(L*W*H)

820*1116*1395mm

1320*950*1360mm

1150*1795*1650mm

1780*1350*1950mm

Machine weight



540Kg

600KG

900KG

Finished bags:

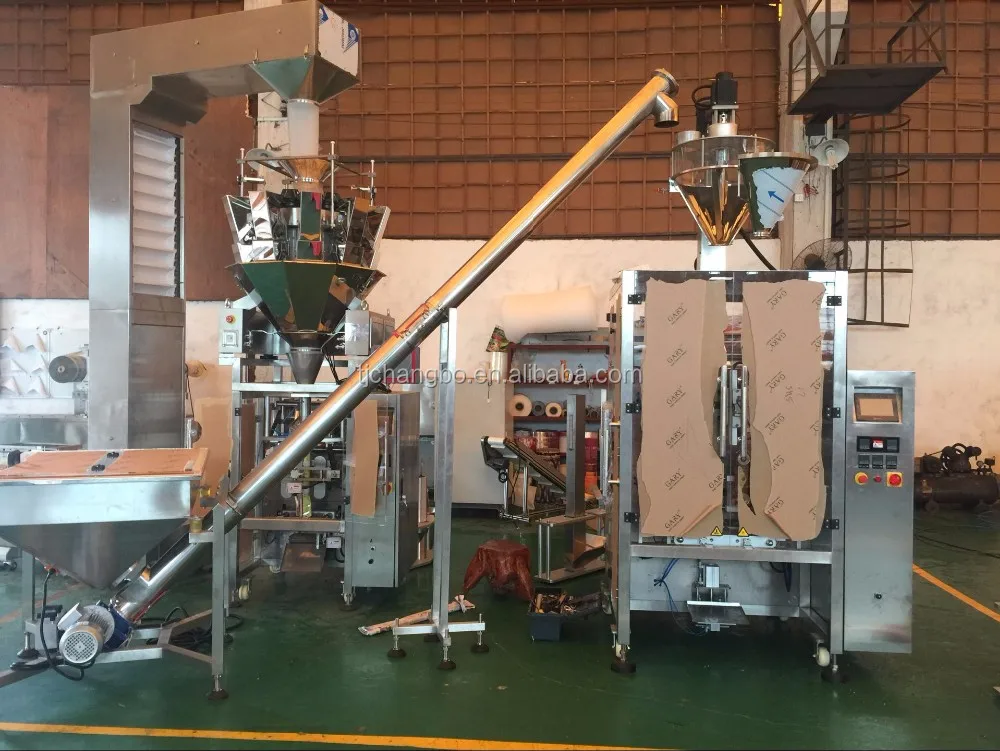

Real Large Vertical Powder Packing Machine Line:
